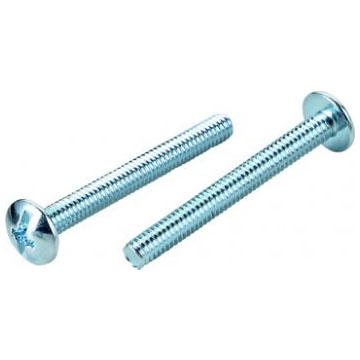

Product Name : Machine Screws-Truss Head (IFI.7)
Products

Found in 1980, ZYH YIN has been specialized in manufacturing hardware accessories. With advanced technology, we develop high quality screws, bolts, and nuts used in wooden furniture with reasonable prices. Superior products we supply are exported to countries worldwide, and help to enable the perfection of the finest products. Furthermore, we accept special demands from customers to fulfill their requests. Contact us now for more information about our products and services.

Machine Screw Flat Head


Unit:MM

ToleranceDKH (MAX)
Size M2.5- 0.45 4.40 4.70 1.50
M3.0- 0.5 5.30 5.60 1.65
M3.5- 0.6 6.14 6.50 1.93
M4.0- 0.7 7.14 7.50 2.20
M5.0- 0.8 8.84 9.20 2.50
M6.0- 1.0 10.57 11.00 3.00
M8.0- 1.25 14.07 14.50 4.00
M10-1.5 17.57 18.00 5.00

Machine Screw Cheese Head (DIN 7985)


Unit:MM

ToleranceDKH
Size M2.5- 0.45 4.70 5.00 1.88 2.12
M3.0- 0.5 5.70 6.00 2.28 2.52
M3.5- 0.6 6.64 7.00 2.58 2.82
M4.0- 0.7 7.64 8.00 2.95 3.25
M5.0- 0.8 9.64 10.00 3.65 3.95
M6.0- 1.0 11.57 12.00 4.45 4.75
M8.0- 1.25 15.57 16.00 5.85 6.15
M10-1.5 19.48 20.00 7.32 7.68

Machine Screw Truss Head (IFI.7)


Unit:MM

ToleranceDKH
Size # 6- 32T 7.70 8.15 1.88 2.18
# 8- 32T 9.25 9.75 2.24 2.59
# 10- 24T 10.80 11.38 2.87 3.25
# 10- 32T 10.80 11.38 2.87 3.25
#12- 24T 12.37 12.98 3.00 3.40
1/4- 20T 13.87 14.55 3.38 3.81
5/16- 18T 16.92 17.73 4.11 4.65

Machine Screw Pan Head (IFI.7)


Unit:MM

ToleranceDKH
Size # 6- 32T 6.50 6.86 2.21 2.46
# 8- 32T 7.77 8.18 2.67 2.92
# 10- 24T 9.07 9.47 3.10 3.38
# 10- 32T 9.07 9.47 3.10 3.38
#12- 24T 10.34 10.80 3.53 3.84
1/4- 20T 12.01 12.50 4.11 4.45
5/16- 18T 15.09 15.62 5.16 5.54
