Hanger Bolt & Dowel Screw
Products
For over 30 years, ZYH YIN is an outstanding hardware and accessory manufacturer in Taiwan. We supply good quality products with reasonable prices, and provide superior screws, bolts and nuts mostly applied to wooden furniture. In addition to the product line, we accept customers’ special designs and develop new products to fit their requests as well. Contact us now for more information.

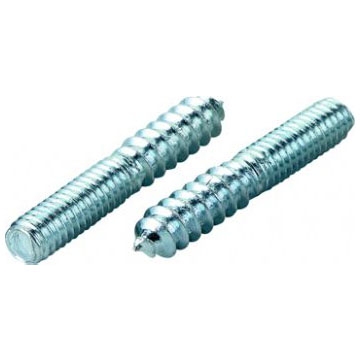

Hanger Bolt
Thread：INCH,METRIC
Unit：MM
| Tolerance | Machine Thread | Wood Thread | D | ||
|---|---|---|---|---|---|
| Size | 1/4 | 1/4-20 | 1/4-10 | 6.30 | 6.80 |
| 5/16 | 5/16-18 | 5/16- 9 | 8.15 | 8.80 | |
| 3/8 | 3/8-16 | 3/8- 7 | 10.00 | 10.60 | |
| M 6 | M 6-1.0 | 1/4-10 | 6.30 | 6.80 | |
| M 8 | M 8-1.25 | 5/16- 9 | 8.30 | 8.90 | |
| M10 | M10-1.5 | 3/8- 7 | 10.40 | 11.20 | |
Dowel Screw
Thread：INCH,METRIC
Unit：MM
| Tolerance | D | ||
|---|---|---|---|
| Size | 1/4-20 | 6.12 | 6.30 |
| 5/16-18 | 7.68 | 7.30 | |
| 3/8-16 | 9.2 | 8.30 | |
| M 6-1.0 | 5.82 | 9.30 | |
| M 8-1.25 | 7.7 | 8.30 | |
Dowel Screw
Thread：INCH,METRIC
Unit：MM
| Tolerance | D | L | ||
|---|---|---|---|---|
| Size | M5.4-11 | 5.10 | 5.70 | 士 2.00 |
| M6.2-10 | 5.90 | 6.50 | 士 2.00 | |
| M8.4- 9 | 8.10 | 8.70 | 士 2.00 | |
| M10.3- 7 | 10.00 | 10.60 | 士 2.00 | |
